SY Series 3-D vibrating sieve machine

Introduction

Three dimensional vibrating screen is a high precision fine powder screening machine. It has low noise and high efficiency. Quick network change takes 3-5 minutes. Fully enclosed structure, it is suitable for particle, powder, mucus and other materials screening filtration.

material

Working principle

The basic principle of the three-dimensional vibrating screen is to use the heavy weight (unbalanced weight) installed above and below the motor shaft to transform the rotating motion of the motor into a horizontal, vertical and inclined three-dimensional motion, and then pass this motion to the screen surface, so that the material does the outward expanding involute motion on the screen surface. The vibrating screen has the advantages of long track of material running and high utilization rate of screen surface. Adjusting the phase Angle of the upper and lower weights can change the movement track of the material on the screen surface. The material can be refined screening, probability screening, etc.

Features

1.No block over sieve holes,dust free.
2.Easy to change mesh sieves,easy to operate and clean.
3.Impurity and coarse materials can be discharged automatically,achieve automatic operation.
4.Small volume,make full use of space,easy to move.
5.High screening efficiency,widely screening scope.
6.Unique structure of frame,long service time,easy to change sieves.
7.High efficiency,ingenious and durable disign.

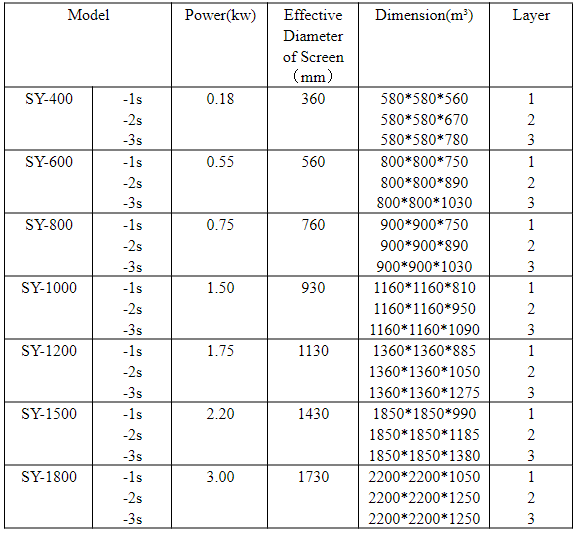

Technical Parameter
